1、Suitable for medium、heavy duty dilling use.
2、For milling machine、lathe、drilling machine、wood working machine
3、High speed drilling can be performed for possessing high griping power

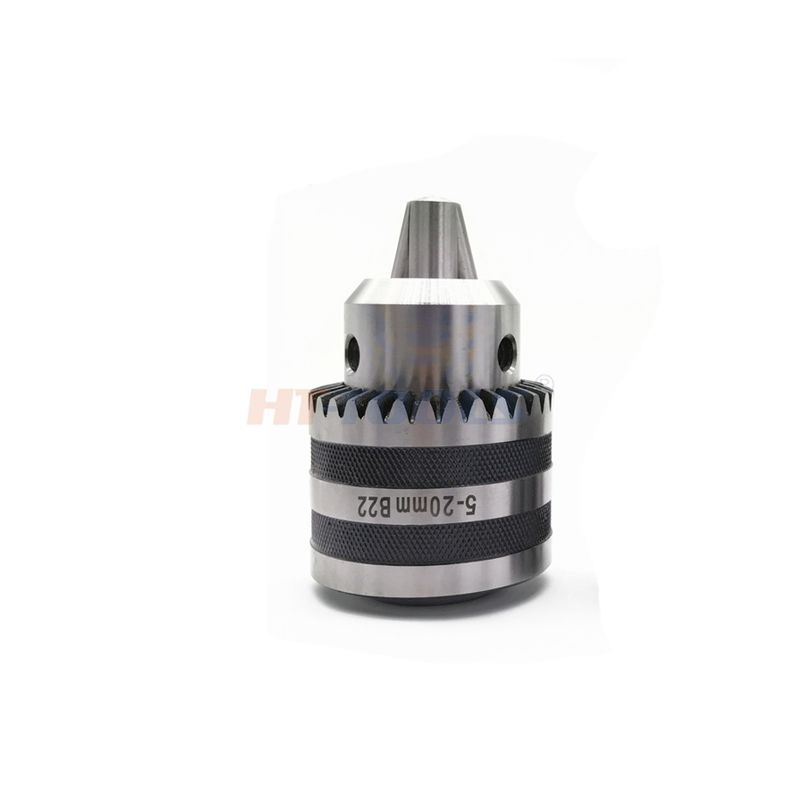

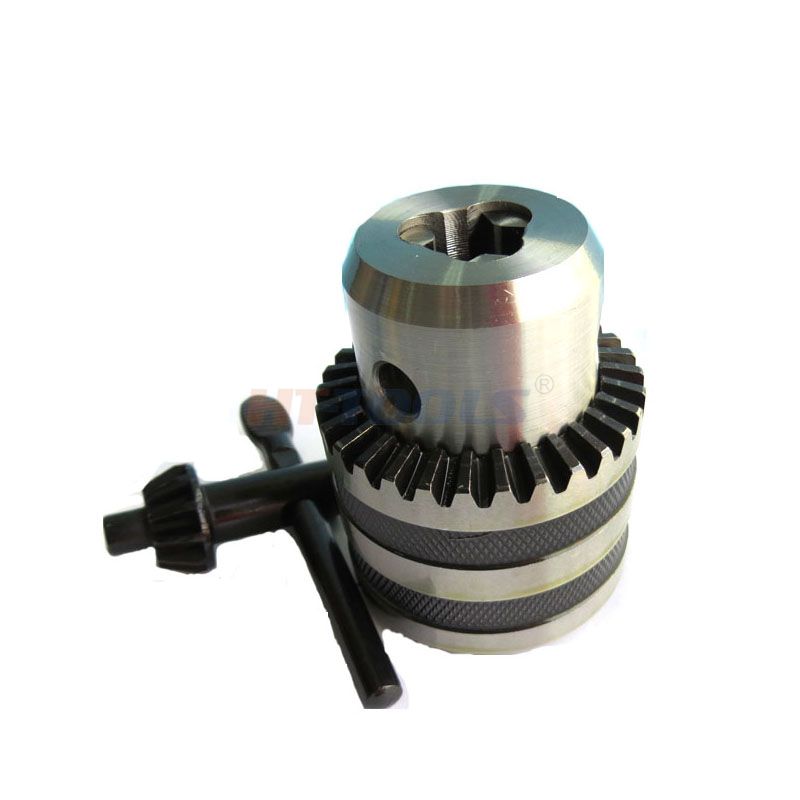

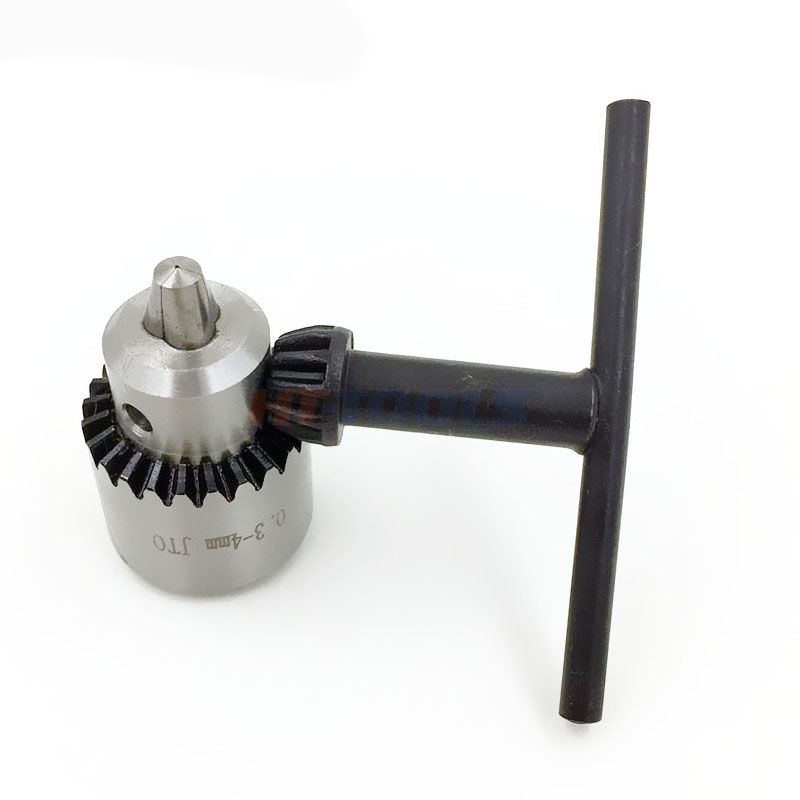

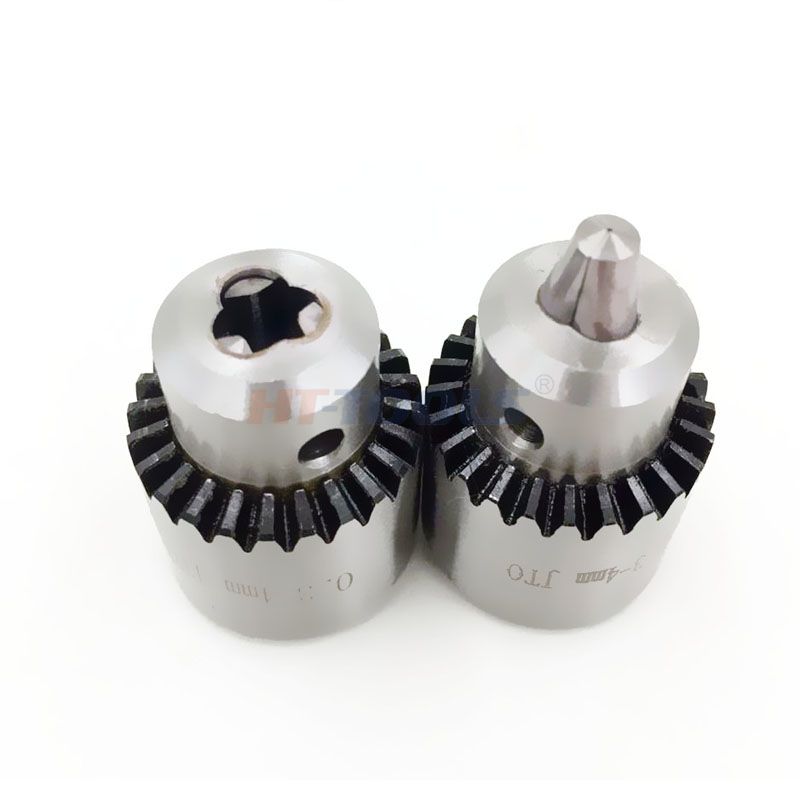

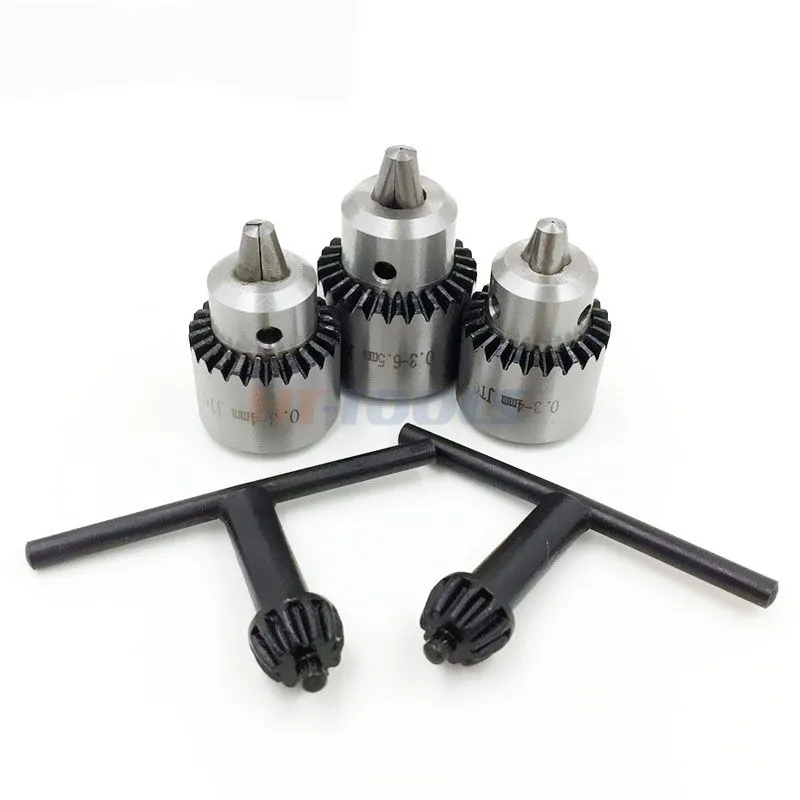

Key type drill chuck
| 订单号 Order No | 夹持范围Capacity | 连接尺寸 Mount | 外径D mm | 长度L mm | 重量 Wt.(kg) | |
| J2110 | 1-10 | 1/32-3/8 | B12 | 42.5 | 70 | 0.34 |
| J2113 | 1-13 | 1/32-1/2 | B16 | 53 | 8 | 0.63 |
| J2513 | 1.5-13 | 1/16-1/2 | B16 | 44 | 78 | 0.45 |
| J2516 | 3-16 | 1/8-5/8 | B16 | 53 | 86 | 0.63 |
| J2516A | 3-16 | 1/8-5/8 | B18 | 53 | 86 | 0.63 |
| J2116 | 3-16 | 1/32-5/8 | B18 | 57 | 98 | 1 |
| J2116A | 1-16 | 1/32-5/8 | B16 | 57 | 93 | 0.82 |
| J2120 | 5-20 | 1/32-5/8 | B22 | 65 | 110 | 1.4 |
| J2210 | 1-10 | 3/16-3/4 | JT2 | 42.5 | 70 | 0.34 |
| J2213 | 1-13 | 1/32-3/8 | JT6 | 53 | 86 | 0.63 |
| J2213A | 1-13 | 1/32-1/2 | JT33 | 53 | 86 | 0.63 |
| J2613 | 1.5-13 | 1/32-1/2 | JT33 | 44 | 78 | 0.45 |
| J2616 | 3-16 | 1/16-1/2 | JT3 | 53 | 86 | 0.63 |
| J2616A | 3-16 | 1/8-5/8 | JT6 | 53 | 86 | 0.63 |
| J2616B | 3-16 | 1/8-5/8 | JT33 | 53 | 93 | 0.65 |
| J2216 | 1-16 | 1/32-5/8 | JT3 | 57 | 98 | 1 |
| J2220 | 5-20 | 3/16-3/4 | JT3 | 65 | 110 | 1.4 |
