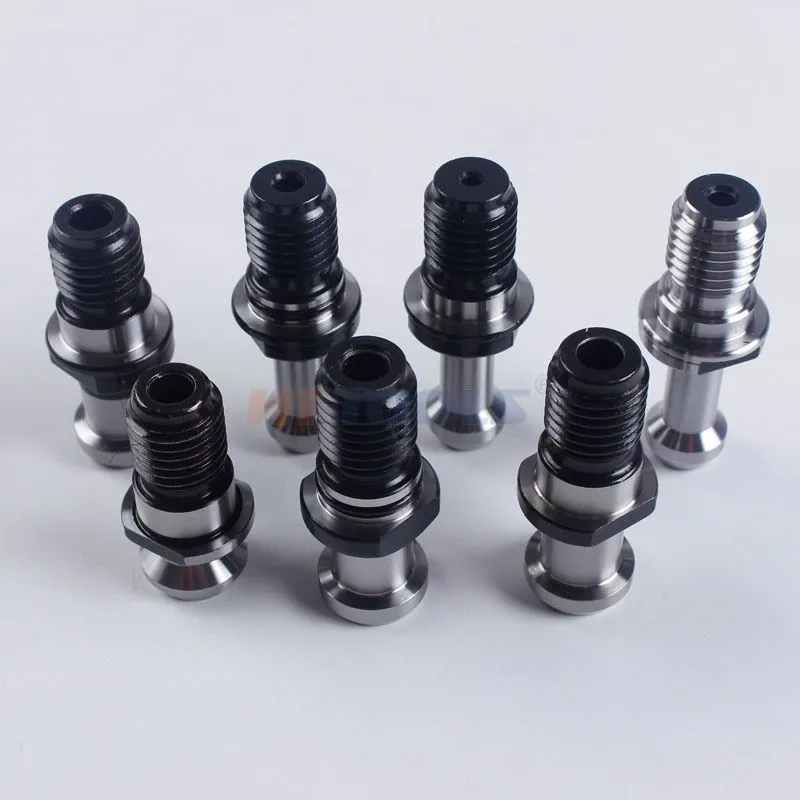

Pull studs are important parts for connecting machine tools and cutting tools,
and they have extremely high precision, rigidity and reliability.
ANSI/ASME B5.50-1985 RETENTION KNOB
| HT-0098 | ANSI/ASME B5.50-1985 RETENTION KNOB | |||||||
| Order No. | D1 | D2 | M | L | L1 | L2 | H | H1 |
| LDA-30 | 9.78 | 13.21 | 1/2"-13 | 27.94 | 11.68 | 8.13 | 2.54 | 1.01 |
| LDA-40 | 12.45 | 18.80 | 5/8"-11 | 38.10 | 16.26 | 11.18 | 3.05 | 1.52 |
| LDA-45 | 15.37 | 23.88 | 3/4"-10 | 45.72 | 20.83 | 14.73 | 4.06 | 2.03 |
| LDA-50 | 20.83 | 28.96 | 1"-8 | 58.42 | 25.4 | 17.78 | 5.08 | 2.54 |
