Material: 40Cr
Hardness: HRC48-52
Accuracy: 0.005mm
Package: Plastic box
Type: C12 C16 C20 C25 C32 C40
Mini order quantity: 10pcs
Package: Plastic box
Brand: HT-TOOLS
Product Details

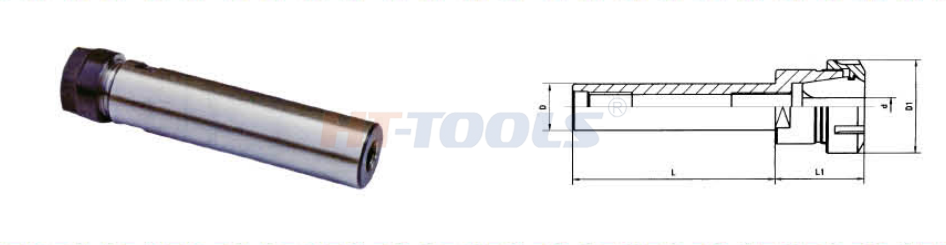

| Order No | d | D | D1 | L | L1 |
| ER11-12 x 100-45 | 1-7 | 12 | 19 | 100 | 45 |
| ER11-16 x 60-40 | 1-7 | 16 | 19 | 60 | 40 |
| ER11-16 x 100-21 | 1-7 | 16 | 19 | 100 | 21 |
| ER16-12 x 100-35 | 1-10 | 12 | 28 | 100 | 35 |
| ER16-16 x 100-50 | 1-10 | 16 | 28 | 100 | 50 |
| ER16-16 x 50-50 | 1-10 | 16 | 28 | 150 | 50 |
| ER16-20 x 100-50 | 1-10 | 20 | 28 | 100 | 50 |
| ER16-20 x 150-50 | 1-10 | 20 | 28 | 150 | 50 |
| ER16-25 x 150-27 | 1-10 | 25 | 28 | 100 | 27 |
| ER16-25 x 150-27 | 1-10 | 25 | 28 | 150 | 27 |
| ER20-20 x 80-50 | 1-13 | 20 | 34 | 80 | 50 |
| ER20-20 x 100-50 | 1-13 | 20 | 34 | 100 | 50 |
| ER20-20 x 150-36 | 1-13 | 20 | 34 | 150 | 36 |
| ER20-25 x 50-50 | 1-13 | 25 | 34 | 50 | 50 |
| ER20-25 x 100-45 | 1-13 | 25 | 34 | 100 | 45 |
| ER25-20 x 150-45 | 1-13 | 25 | 34 | 150 | 45 |
| ER25-20 x 100-50 | 1-16 | 20 | 42 | 100 | 50 |
| ER25-20 x 150-50 | 1-16 | 20 | 42 | 150 | 50 |
| ER25-25 x 80-50 | 1-16 | 25 | 42 | 80 | 50 |
| ER25-25 x 100-50 | 1-16 | 25 | 42 | 100 | 50 |
| ER25-25 x 150-36 | 1-16 | 25 | 42 | 150 | 36 |
| ER25-32 x 60-45 | 1-16 | 32 | 42 | 60 | 45 |
| ER25-32 x 100-45 | 1-16 | 32 | 42 | 100 | 45 |
| ER32-25 x 80-55 | 2-20 | 25 | 50 | 80 | 55 |
| ER32-25 x 100-55 | 2-20 | 25 | 50 | 100 | 55 |
| ER32-32 x 55-45 | 2-20 | 32 | 50 | 55 | 45 |
| ER32-32 x 100-55 | 2-20 | 32 | 50 | 100 | 55 |
| ER32-40 x 75-50 | 2-20 | 40 | 50 | 75 | 50 |
| ER32-40 x 100-50 | 2-20 | 40 | 50 | 100 | 50 |
| ER40-32 x 80-60 | 2-26 | 32 | 63 | 80 | 60 |
| ER40-40 x 100-60 | 2-26 | 40 | 63 | 100 | 60 |
Other Products
EOC nut has high rigidity,strong clamping force,convenient for engraving machine,spindle machine,extension shank,locking spring collet.
The collet does not have an elastic shrinkage range, emphasizing the clamping force
Used for boring, milling, drilling, tapping, grinding and engraving operation, etc.
A set included: 1 collet chuck, 1 clamping nut, full set of collets and 1 spanner.
